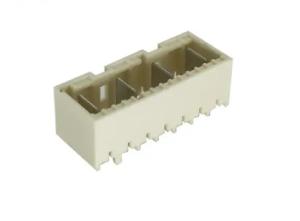

Pitch 10.0mm Power PCB Header Connectors Single Row Wafer Housing Terminal PA66 PA46 UL94v0

Certification : ISO9001, IATF16949

Place of Origin : China

MOQ : 1000 pcs

Supply Ability : 10k daily capacity

Delivery Time : 2 weeks

Packaging Details : tape and reel, tube

plastic material : PA66, PA46 UL94v0

contact material : brass, phosphor bronze

current rated : 16A

rated voltage : 600V

plating : tin or gold plated

pitch : 10.0mm

operating temperature : =40-+105 degree

Contact Now

972-10731-000001 Pitch 10.0mm Header Power Connectors single row wafer housing terminal PA66 PA46 black beige

Specifications:

Material And Finish:
Insulator: Nylon 46 30% G/F UL94V-0 Color: Black
Contact: Copper alloy
Plated: Q=100U" MIN. TIN OVER 50U" NICKEL.
H=30U" MIN. SETECT GOLD IN CONTACT AREA. 100U" MIN. SELECT TIN on Solder tails over 50U" MIN. NICKEL

Rating:
Current Rating:50 Amp
Voltage Rating:600V DC
Operating Temperature Range:-40°~+105°C

Electrical:
Contact resistance:10m Ohm Max
Insulator resistance:1000M ohm min.
Withstanding Voltage:1500V AC/Minute

Pitch 10.0mm Power PCB Header Connectors Single Row Wafer Housing Terminal PA66 PA46 UL94v0
